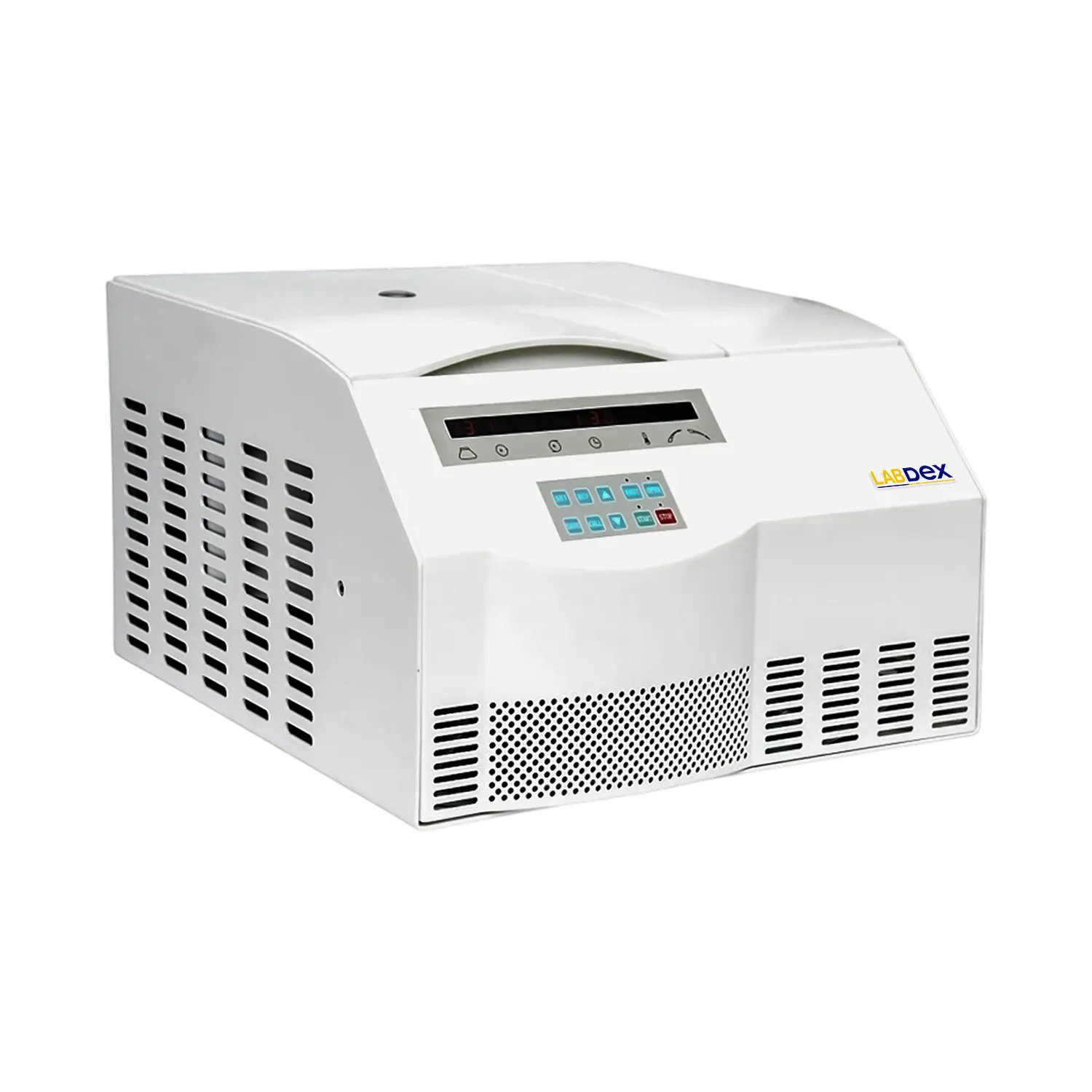

High speed centrifuge LX114HSC is a tabletop unit with a high speed of up to 21000 rpm for effective separation and filtration of given samples. Equipped with LED display, dual core processor, fluorine free compressor, brushless DC motor and auto electric locking system. It has double effect cooling cycle which ensures effective cooling along with three tier protective steel covering to ensure safety.
| Maximum speed | 21000 rpm |
|---|---|
| Maximum RCF | 30910 x g |
| Maximum capacity | 4 x 800 ml |
| Speed accuracy | ± 20 rpm |
| Timer range | 1 - 99 hr. 59 min |
| Temp. Range | -20 °C - 40 °C |
| Noise | ≤ 58 dB |
| Power supply | AC 110 - 220 V / 50 - 60 Hz / 15 A |
| Dimensions | 720 x 710 x 420 mm |
| Weight | 130 kg |
| Packing dimensions | 880 x 800 x 580 mm |
| Gross weight | 150 kg |
Centrifugal speed - 21000 rpm
LED display to indicate all running parameters
Three tier protective steel covering
Brushless DC motor makes it maintenance free
Dual core processor enables it to be high/ low speed and large/small capacity compatible
Fluorine free compressors to ensure environment protection
Double cycle cooling effect to ensure effective cooling
Automatic electric lid lock system provides protection again over speed and temperature and imbalance to ensure safety of the operation
Enables easy and quick loading of samples
Users are free to select 10 different accelerating and decelerating speed of their choice
Rotor is connected to spindle by specialized taper sleeve
dapters can be designed according to the experimental requirement
Optional rotors available
Used in protein precipitation, RNA extraction, Clinical sample processing
| Rotor name | Maximum speed (rpm) | Maximum capacity (ml) | Maximum RCF x g |
| Swing rotor 01 | 4000 | 4 x 800 (Round cup) | 3450 |
| Swing rotor 02 | 4000 | 4 x 500 ( Round cup) | 3380 |
| Swing rotor 03 | 4000 | 4 x 500 (Square cup) | 3310 |
| Swing rotor 04 | 4000 | 4 x 600 (Oval cup) | 3530 |
| Swing rotor 05 | 4000 | 4 x 1 x 50 | 4730 |
| Swing rotor 06 | 4000 | 4 x 1 x100 | 4730 |
| Swing rotor 07 | 4000 | 4 x 2 x 100 | 3200 |
| Swing rotor 08 | 4000 | 4 x 2 x 50 | 3200 |
| Swing rotor 09 | 4000 | 4 x 12 x 10 (Vacuum tube) | 2880 |
| Swing rotor 10 | 4000 | 4 x 12 x 7 (Vacuum tube) | 2760 |
| Swing rotor 11 | 4000 | 4 x 12 x 5 (Vacuum tube) | 2480 |
| Swing rotor 12 | 4000 | 4 x 8 x 10/15 (Vacuum tube) | 3200 |
| Swing rotor 13 | 4000 | 4 x 6 x 10/15 (Vacuum tube) | 3200 |
| Swing rotor 14 | 4000 | 4 x 4 x 10/15 (Vacuum tube) | 3200 |
| Swing rotor 15 | 4000 | 4 x 16 x 5 (Vacuum tube) | 2530 |
| Swing rotor 16 | 4000 | 4 x 16 x 7 (Vacuum tube) | 2890 |
| Swing rotor 17 | 4000 | 4 x 24 x 5 (Vacuum tube) | 2840 |
| Swing rotor 18 | 4000 | 4 x 24 x 7 (Vacuum tube) | 3140 |
| Swing rotor 19 | 4000 | 4 x 18 x 10 (Vacuum tube) | 3140 |
| Swing rotor 20 | 4000 | 4 x 30 x 7 (Vacuum tube) | 3160 |
| Swing rotor 21 | 4000 | 4 x 40 x 7 (Vacuum tube) | 3270 |
| Swing rotor 22 | 4000 | 4 x 28 x 10 (Vacuum tube) | 3270 |
| Swing rotor 23 | 15000 | 4 x 5 | 19920 |
| Microplate rotor 01 | 4000 | 4 x 4 x 96 Well | 2940 |
| Microplate rotor 02 | 4000 | 2 x 4 x 96 Well | 3210 |
| Microplate rotor 03 | 4000 | 2 x 3 x 48 Well | 2300 |
| Angle rotor 01 | 21000 | 12 x 1.5/2 | 30910 |
| Angle rotor 02 | 15000 | 40 x 0.5 | 22930 |
| Angle rotor 03 | 17000 | 24 x 1.5/2 | 29760 |
| Angle rotor 04 | 13500 | 30 x 1.5/2 | 19340 |
| Angle rotor 05 | 16000 | 16 x 5 | 22020 |
| Angle rotor 06 | 14000 | 12 x 7 | 21380 |
| Angle rotor 07 | 10000 | 12 x 15 | 11840 |
| Angle rotor 08 | 15000 | 12 x 10 | 22680 |
| Angle rotor 09 | 15000 | 8 x 20 | 14510 |
| Angle rotor 10 | 14000 | 6 x 30 | 19060 |
| Angle rotor 11 | 12000 | 6 x 50 | 16050 |
| Angle rotor 12 | 12000 | 6 x 70 | 15570 |
| Angle rotor 13 | 12000 | 4 x 100 | 14850 |
| Angle rotor 14 | 12000 | 6 x 100 | 16390 |
| Angle rotor 15 | 16000 | 6 x 10 | 21500 |
| Angle rotor 16 | 18000 | 30 x 0.5 | 26660 |
| Angle rotor 17 | 13500 | 48 x 1.5/2 | 17930 |
| Angle rotor 18 | 13000 | 8 x 15 | 17790 |
| Angle rotor 19 | 5000 | 24 x 15 | 3500 |
| Angle rotor 20 | 5000 | 12 x 50 | 3860 |
| Angle rotor 21 | 5000 | 24 x 50 | 2970 |
| Angle rotor 22 | 4000 | 12 x 100 | 2970 |
| Angle rotor 23 | 8000 | 4 x 250 | 9090 |
| Angle rotor 24 | 7000 | 6 x 250 | 8050 |
| Angle rotor 25 | 5000 | 30 x 15 | 3830 |
Labdex High Speed Centrifuge deliver powerful, high‑G separation for demanding laboratory workflows, ideal for molecular biology, biochemistry, and viral research applications. Equipped with high‑speed rotors, adjustable speed and time settings, programmable run cycles, automatic imbalance detection, safety lid‑lock, and efficient cooling or ventilation — they ensure consistent, reproducible separation of cells, subcellular components, and biomolecules for advanced research and diagnostics.
Labdex Mini Centrifuge are compact, benchtop instruments ideal for rapid spin‑downs and small‑volume sample preparation in molecular biology, biochemistry, and clinical labs. With adjustable speed and time control, automatic lid‑lock safety, quiet low‑noise operation, and support for a variety of tube sizes — they deliver fast, dependable micro‑centrifugation in limited bench space, making them perfect for PCR prep, cell pelleting, and routine sample clarification.
We at Labex offers series of Mini Plate Centrifuges with a speed range of 2500 rpm maximum. It is widely used in molecular laboratory before and after thermal cycling to improve PCR yield.
Labdex Automatic Decapping Centrifuge deliver fast, hands-free tube decapping with precise and reliable centrifugation performance. Engineered for high-throughput laboratories, they feature programmable speed and time, automatic imbalance detection, digital display, corrosion-resistant rotors, and safety lid-lock mechanisms. These advanced features enhance workflow efficiency, minimize contamination risks, and support consistent sample processing across clinical, research, and industrial applications.
Labdex Blood Bank Tube Centrifuge provide precise, stable, and high-speed separation for serology and blood component processing. They feature adjustable speed and time, programmable run cycles, automatic imbalance detection, safety lid-lock, and corrosion-resistant rotors. Designed for reliable performance in demanding laboratory environments, they enhance workflow accuracy, support critical diagnostic procedures, and ensure consistent results across blood bank and clinical applications.
