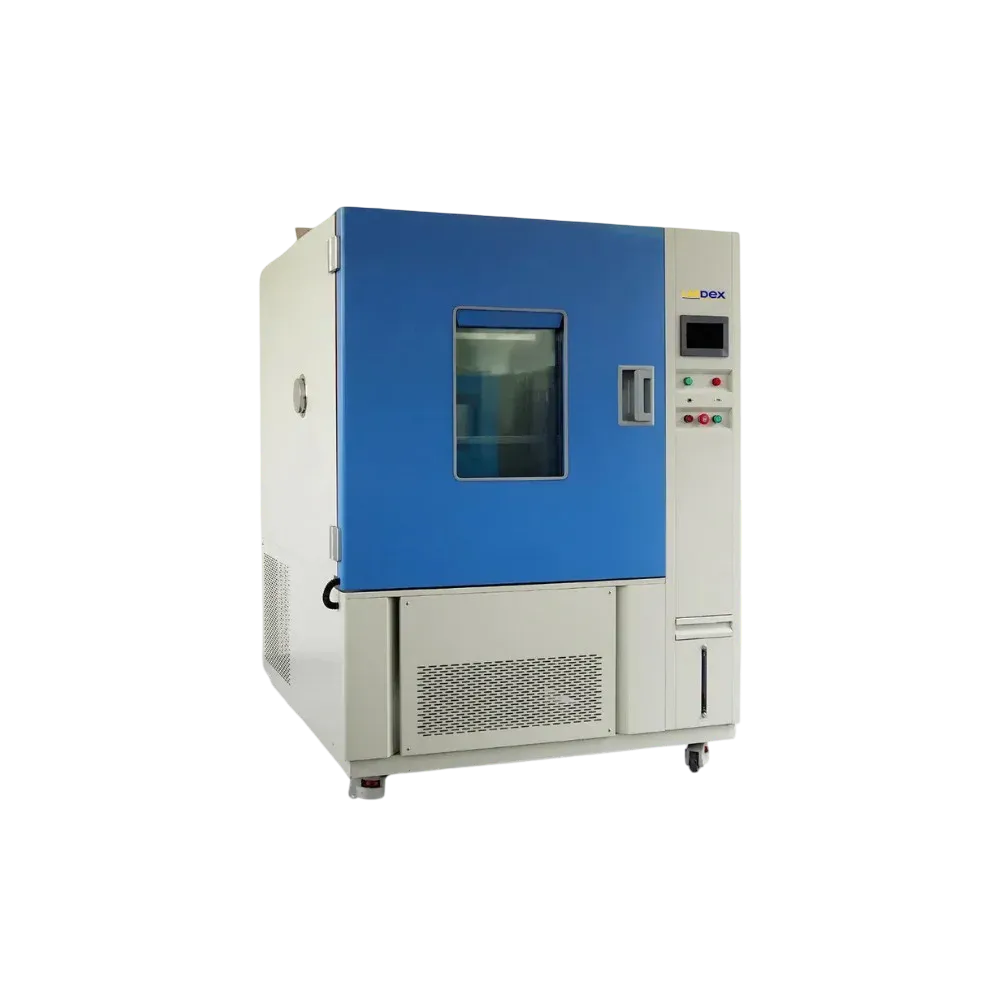

Temperature and Humidity Test Chamber LX306THC equipped with PTR platinum resistance PT100Ω temperature sensor, programmable color LCD touch screen controller, Ethernet connection, USB Port, and centrifugal wind fan. The inner is made of SUS304 stainless steel and the outer chamber is made of steel plate with a protective coating. Designed to simulate a wide range of temperature ranges, and humidity environments for testing a wide variety of products for their quality, performance, shelf life and stability.
| Volume | 600 L |
|---|---|
| Internal dimension (D x W x H) | 750 x 800 x 1000 mm |
| Temperature range | -70°C to +180°C |
| Temperature deviation | ± 2.0°C |
| Humidity range | 10 % - 98 % RH, Controllable |
| Humidity deviation | ± 2.5 % RH |
| Cooling rate | 5°C / Min (empty load) |
| Heating rate | 5°C / Min (empty load) |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH Compressor |
| Refrigerant | R449A, R23 Refrigerant |
| Heating element | Nichrome heater |
| Controller | Programmable color LCD touch screen controller Ethernet connection, USB port |
| Water supply system | Automatic water supply Water purification system |
| Humidifier | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Temperature sensor | PTR Platinum resistance PT100 Ω/MV A-class |
| Humidity sensor | Dry and wet bulb sensor |
| Sample shelf | 5 Pcs sample shelf, Removable and adjustable |
| Cable hole | Left wall: 1 pc diameter 100 mm round hole Right wall: 1 pc diameter 160 mm round hole |
| Water tank | Build in water tank, easy to review, easy to add water, with water level line |
| Observation window | Interior lighting, double-layer thermo stability silicone rubber sealing |
| Air circulation | Centrifugal wind fan |
| Exterior material | Steel plate with a protective coating |
| Interior material | SUS304 Stainless steel |
| Thermal insulation | Polyurethane foam and insulation cotton |
| Environmental conditional | 5°C - +35°C, ≤ 85 % RH |
| Heat load | 3000 W |
| Power supply | AC 400 V 50 Hz; 3 Phase |
| Overall dimension (D x W x H) | 1800 x 1100 x 2200 mm |
| Net weight | 650 Kg |
| Packing dimension | 2300 x 1300 x 2450 mm |
| Gross weight | 790 Kg |
Built-in PID controller with programmable settings and LCD touchscreen interface
Can preset program on user testing requirements
Built-in LED light for the work room lighting
Uses environmentally friendly refrigerant
Supports USB and Ethernet connectivity
Equipped with Emergency Stop Button
Door equipped with high-quality tempered glass window
Fitted with four castors featuring brakes and height-adjustable functions
Provides automatic and manual control of water intake
Cable hole present both side can connect to pipes
Includes multiple safety features such as humidifier dry-combustion protection, over-temperature protection, over-current protection, refrigerant high-pressure protection, water shortage protection
Used in all types of electronic products for quality testing, electric appliances and products from communication, instruction, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
