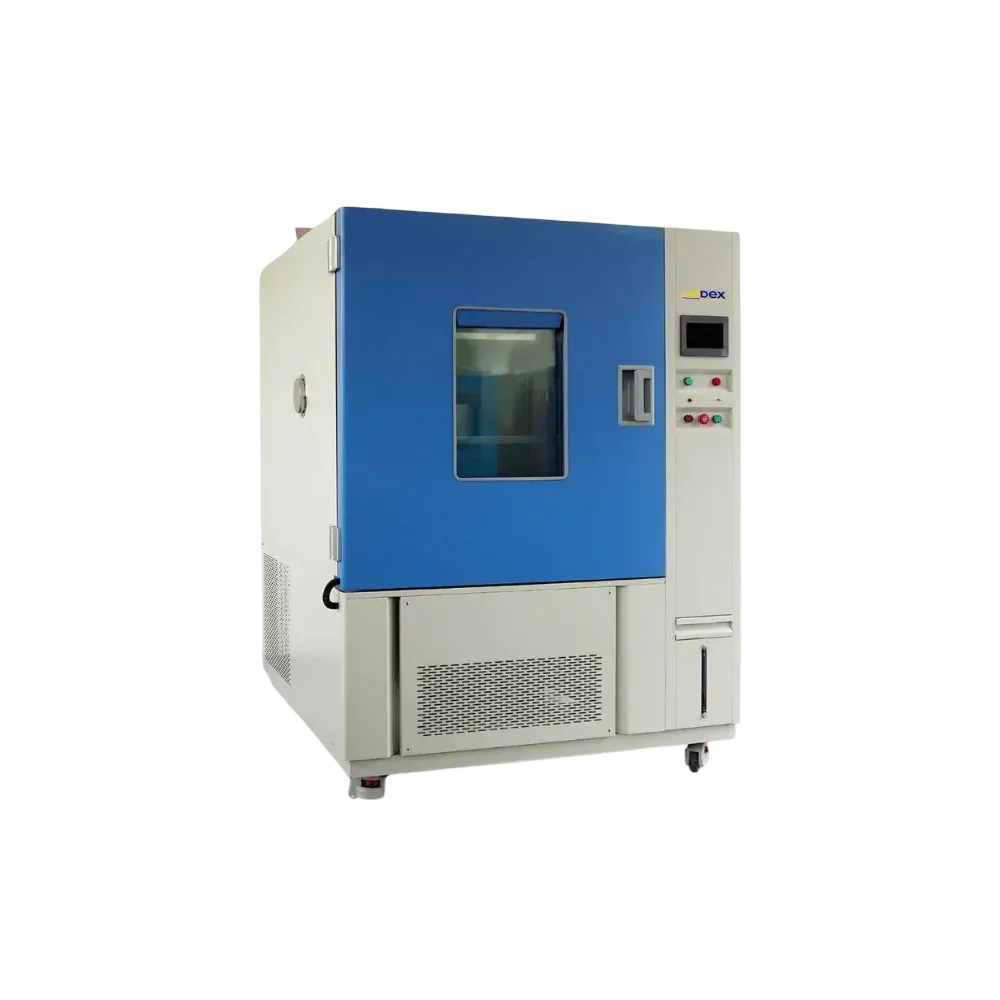

Temperature and Humidity Test Chamber LX307THC is equipped with a PTR platinum resistance PT100Ω temperature sensor, a programmable color LCD touch screen controller, Ethernet connectivity, PC Link, and a centrifugal fan. The interior is constructed from SUS 304 stainless steel, while the exterior is made of coated steel for durability. It features an 80 mm thick tempered glass window for sample observation. Designed to simulate a wide range of temperature and humidity conditions, it allows testing of products for quality, performance, shelf life, and stability.
| Volume | 500 L |
|---|---|
| Internal dimension (W x D x H) | 800 x 700 x 900 mm |
| External dimension (W x D x H) | 1340 x 1200 x 2040 mm |
| Temperature range | 0°C - + 100°C, Controllable |
| Temperature deviation | ± 2.0°C |
| Humidity range | 20 % - 98 % RH, Controllable |
| Humidity deviation | ± 2.5 % RH |
| Cooling rate | 1°C / Min |
| Heating rate | 3°C / Min |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Refrigerant | R449A |
| Heating element | Nichrome heater |
| Controller | Programmable color LCD touch screen controller, ethernet connection, USB Port |
| Humidifier | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Temperature sensor | PTR Platinum resistance PT 100 Ω / MV A-class |
| Humidity sensor | Dry and wet bulb sensor |
| Shelf | 2 Pcs Sample shelves, adjustable |
| Water tank dimension | 400 x 300 x 350 mm |
| View window dimension | 280 x 350 mm |
| Air circulation | Centrifugal wind fan |
| Exterior material | Steel plate with a protective coating |
| Interior material | SUS 304 Stainless steel |
| Thermal insulation | Polyurethane foam and insulation cotton |
| Observation window | Interior lighting, double layer thermo stability silicone rubber sealing |
| Environmental conditional | + 5°C to + 35°C, ≤ 85 % RH |
| Power supply | AC 380 V 50 Hz, 3 Phase |
| Net weight | 426 Kg |
| Packing dimension | 1480 x 1700 x 2340 mm |
| Gross weight | 570 Kg |
PID programmable color touch screen controller
Resistant to high and low temperature as well as moisture corrosion
Inner chamber made of SUS 304 stainless steel with a mirror finish
Centrifugal fan ensures uniform air distribution throughout the chamber
Nickel-chromium alloy heating wire for efficient heating
High temperature resistance for long-term operation
Stainless steel humidifier with built-in heater and water level float system
Steam injection system for precise humidity control
Double-layer insulated tempered glass window for clear observation
Electrostatic-coated exterior for corrosion resistance
Enhanced insulation performance with environmental protection and noise reduction
Used in all types of electronic products for quality testing, electric appliances and products from communication, instruction, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Shelve x 2 Pcs
<p>Labdex Temperature and Humidity Chambers offer precise environmental control with stable temperature and humidity conditions. Their programmable digital monitoring ensures reliable results, making them suitable for electronics, automotive, and aerospace testing, material aging studies, and controlled research and development applications.</p>
<p>Labdex Cyclic Corrosion Chambers simulate real-world corrosion by alternating between salt spray, humidity, and drying cycles. Equipped with digital programmable controls and robust construction, they are ideal for testing automotive and aerospace components, evaluating coatings and paints, and conducting metal corrosion studies.</p>
<p>Labdex Salt Spray Chambers accelerate corrosion testing by generating a fine salt mist under controlled temperature and spray conditions. With high accuracy and reliable performance, these chambers are widely used for coating and paint testing, metal corrosion resistance evaluation, and quality control of industrial components.</p>
Labdex Salt Fog Spray and SO₂ Gas Chambers simulate aggressive corrosion environments with combined salt mist and sulfur dioxide exposure. Their durable construction and precise environmental control make them perfect for metal and alloy corrosion studies, evaluating coating performance, and testing automotive and marine equipment.

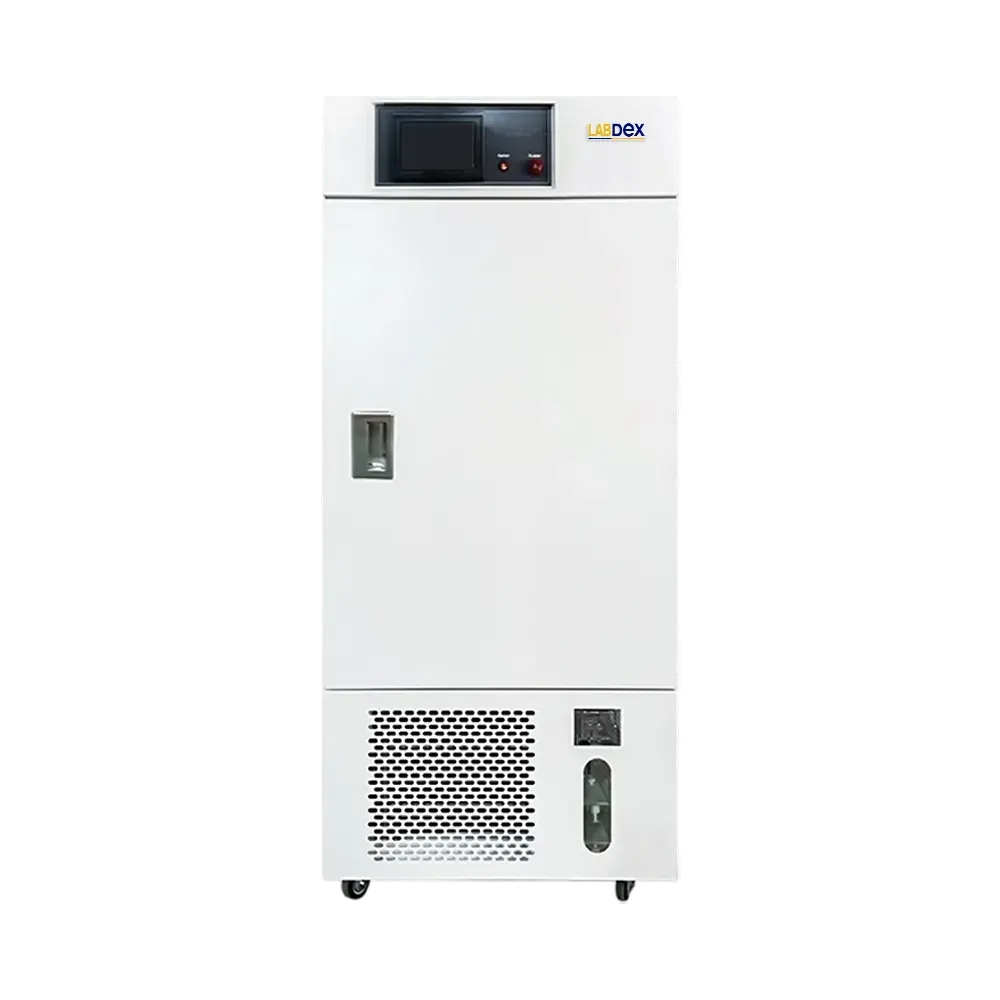

Labdex Drug Stability Chambers provide precise control of temperature and humidity, supporting long-term monitoring of pharmaceutical products. Designed to meet ICH and WHO standards, these chambers are essential for drug stability testing, shelf-life studies, and quality assurance in medical research.
