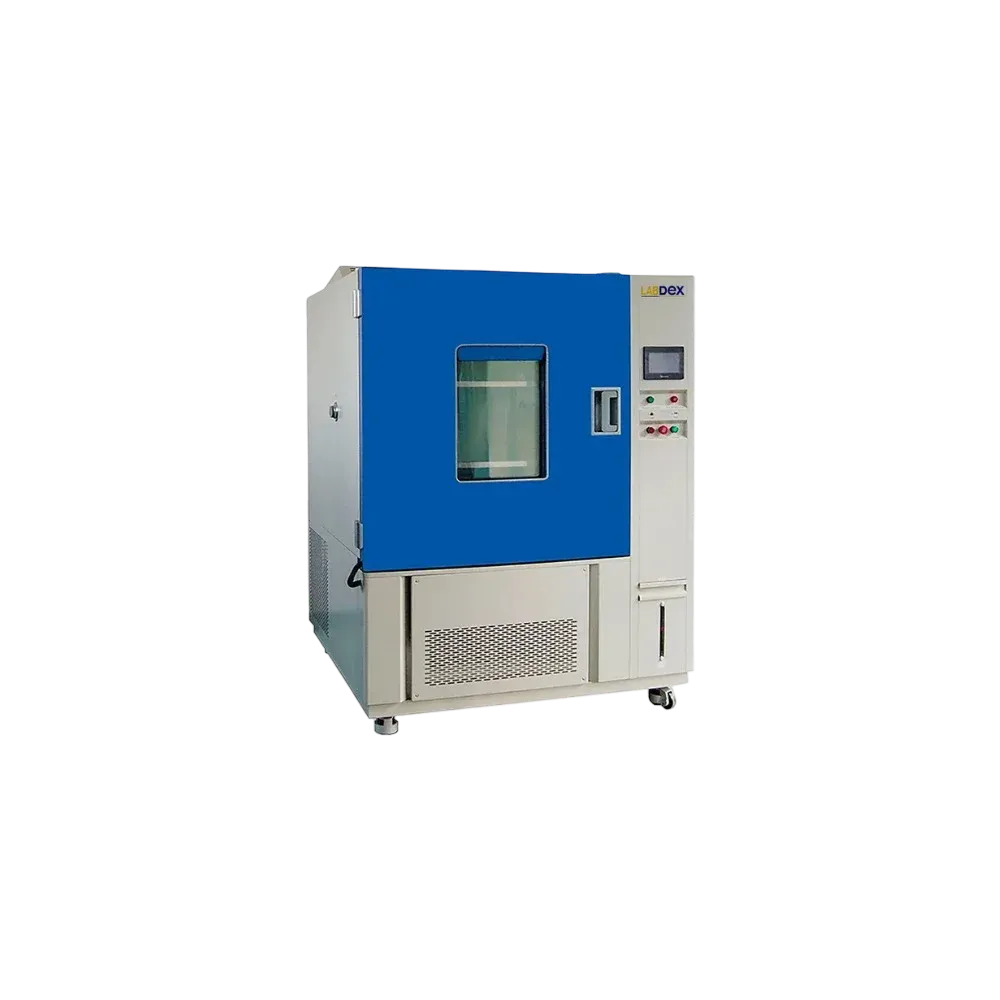

Temperature and Humidity Test Chamber LX309THC equipped with PTR platinum resistance PT100Ω temperature sensor, programmable color LCD touch screen controller, Ethernet connection, PC link, and centrifugal wind fan. The inner is made of SUS304 stainless steel and the outer chamber is made of steel plate with a protective coating. It has 80 mm thick tempered glass for observing samples. Designed to simulate a wide range of temperature ranges, and humidity environments for testing a wide variety of products for their quality, performance, shelf life and stability.
| Volume | 100 L |
|---|---|
| Internal dimension (D x W x H) | 400 x 500 x 500 mm |
| Temperature range | 0℃ to + 100℃ |
| Temperature deviation | ± 2.0℃ |
| Humidity range | 20 % - 85 % RH |
| Humidity deviation | ± 2.5 % RH |
| Cooling rate | 1℃ / Min |
| Heating rate | 3℃ / Min |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Refrigerant | R449A |
| Heating element | Nichrome heater |
| Controller | Programmable color LCD touch screen controller, Ethernet connection, USB port |
| Humidifier | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Temperature sensor | PTR Platinum Resistance PT100 Ω /MV A-class |
| Humidity sensor | Dry bulb humidity sensor |
| Environmental conditional | 5℃ - 35 ℃, ≤ 85 % RH |
| Water tank dimension | 400 x 300 x 350 mm |
| View window dimension | 280 x 350 mm |
| Air circulation | Centrifugal wind fan |
| Exterior material | Steel plate with protective coating |
| Interior material | SUS304 Stainless steel |
| Thermal insulation | Polyurethane foam and insulation cotton |
| Observation | Interior LED lighting, double-layer thermo stability silicone rubber sealing |
| Power supply | AC 230 V, 50 Hz, 1 Phase |
| External dimension (D x W x H) | 1100 x 1050 x 1620 mm |
| Packing dimension (D x W x H) | 1250 x 1200 x 1800 mm |
| Gross weight | 380 Kg |
Built-in PID controller with programmable settings and LCD touchscreen interface
Supports USB and Ethernet connectivity; allows integration into local area networks
Equipped with 2 Pcs adjustable, stainless steel shelves
Built-in water tank for automatic and manual water inlet
Explosion resistance locker, with adjustable file tray below controller
Noise level not below 65dB
Includes multiple safety features such as humidifier dry-combustion protection, over-temperature protection, over-current protection, refrigerant high-pressure protection, water shortage protection, earth leakage protection and emergency stop button
Fitted with four castors featuring brakes and height-adjustable functions for mobility and stability
Door equipped with high-quality tempered glass window for clear viewing during operation
Supports PC network cable connection for control software download and USB port for direct test data transfer
Used in all types of electronic products for quality testing, electric appliances and products from communication, instruction, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
