FTIR Spectrometer LX12IR is designed with a spectral range of 7800 - 350 cm⁻¹ and a high signal-to-noise ratio of up to 40,000:1, featuring strong anti-electromagnetic interference and excellent electromagnetic compatibility for protection against radiation. It is equipped with a cube-corner Michelson interferometer and a highly sensitive optical system incorporating patented fixed mirror-alignment technology. The instrument supports Ethernet and Wi-Fi dual-mode communication, aligning with the development trend of “Internet + testing instruments.”
| Spectral range | 7800 cm⁻¹ to 350 cm⁻¹ |
|---|---|
| Resolution | 0.85 cm⁻¹ |
| Wave number precision | ± 0.01 cm⁻¹ |
| Interferometer | Cube-corner Michelson interferometer |
| Beam splitter | Multilayer Ge coated KBr |
| Detector | DLATGS (Standard) MCT detector (Optional) |
| IR Source | High intensity, long lifetime, air-cooled IR source |
| Signal to noise ratio | Better than 40,000:1 (RMS value, at 2100 cm⁻¹ - 2200 cm⁻¹, resolution: 4 cm⁻¹, 1 minute data collection) |
| Scanning speed | Microprocessor control, different scanning speed selectable |
| Software | Main FTOS (Standard) FDA 21 CFR Part 11 compliance software (Optional) |
| Communication | Ethernet interface & WIFI wireless communication |
| Data output | Standard data format, report generation, and output |
| Status diagnosis | Power on self-check, real-time temperature, and humidity monitoring and reminders |
| Environment conditions | Temperature: 10℃ - 30℃, Humidity: Less than 60 % |
| Power supply | AC 220 V ± 22 V 50 Hz ± 1 Hz |
| External dimension | 490 x 420 x 240 mm |
| Net weight | 25 Kg |
| Packing dimension | 750 x 650 x 890 mm |
| Gross weight | 80 Kg |
Built-in microprocessor control scanning speed
Offers gold coated reflecting mirrors to cover maximum light
Comes with DLATGS detector
External isolated IR source module and large space heat dissipation chamber
Cube-corner Michelson interferometer
Equipped with MainFTOS software which is compatible with all Windows OS
It has various specialized IR libraries
Used in in the field of science research, quality control production, testing, and detection in various fields such as compounded plastics, blends, fillers, paints, rubbers, etc.
Transmission sample holder
FDA 21 CFR Part11 compliance software
Gas cell
Liquid cell Defused/Specular reflection
Single/multiple reflection ATR
IR Microscope etc
FTIR Spectrometer
Labdex FTIR Spectrometer utilize Fourier Transform Infrared technology to provide detailed molecular information by analyzing infrared absorption patterns. These instruments enable fast, non-destructive analysis with high accuracy and reproducibility. Designed for both routine and advanced research.
- Spectral range: 7800 cm⁻¹ to 350 cm⁻¹
- Resolution: 0.85 cm⁻¹
- Wave number precision: ± 0.01 cm⁻¹
- Spectral range: 7800 cm⁻¹ to 350 cm⁻¹
- Resolution: 0.85 cm⁻¹
- Wave number precision: ± 0.01 cm⁻¹
Handheld Raman Spectrometer
Labdex Handheld Raman Spectrometer delivers fast, on-site material identification in a compact, lightweight design. Advanced detection modes enable substance ID, mixture analysis, and spectral comparison through an intuitive HD touchscreen. Ideal for field professionals seeking quick decisions and confident analysis.
- Detector: Back-illuminated high-sensitivity CCD detector
- Spectral range: 200 - 3500 cmˉ¹
- Display: 5.5 Inch HD color touch screen
Oil Emission Spectrometer
Labdex Oil Emission Spectrometer enables rapid, accurate multi-element analysis of lubricating oils, hydraulic oils, fuels, coolants and electrolytes to detect wear metals, contaminants and additives. It supports oil quality control, equipment condition monitoring, cooling system and industrial water analysis.
- Spectral range: 201 - 810 nm
- Focal distance: 400 mm
- Sample type: Lubricating oil, hydraulic oil, fuel oil, grease, antifreeze, cooling water, electrolyte etc.
- Spectral range: 201 - 900 nm
- Focal distance: 400 mm
- Sample type: Lubricating oil, hydraulic oil, fuel oil, grease, antifreeze, cooling water, electrolyte etc.

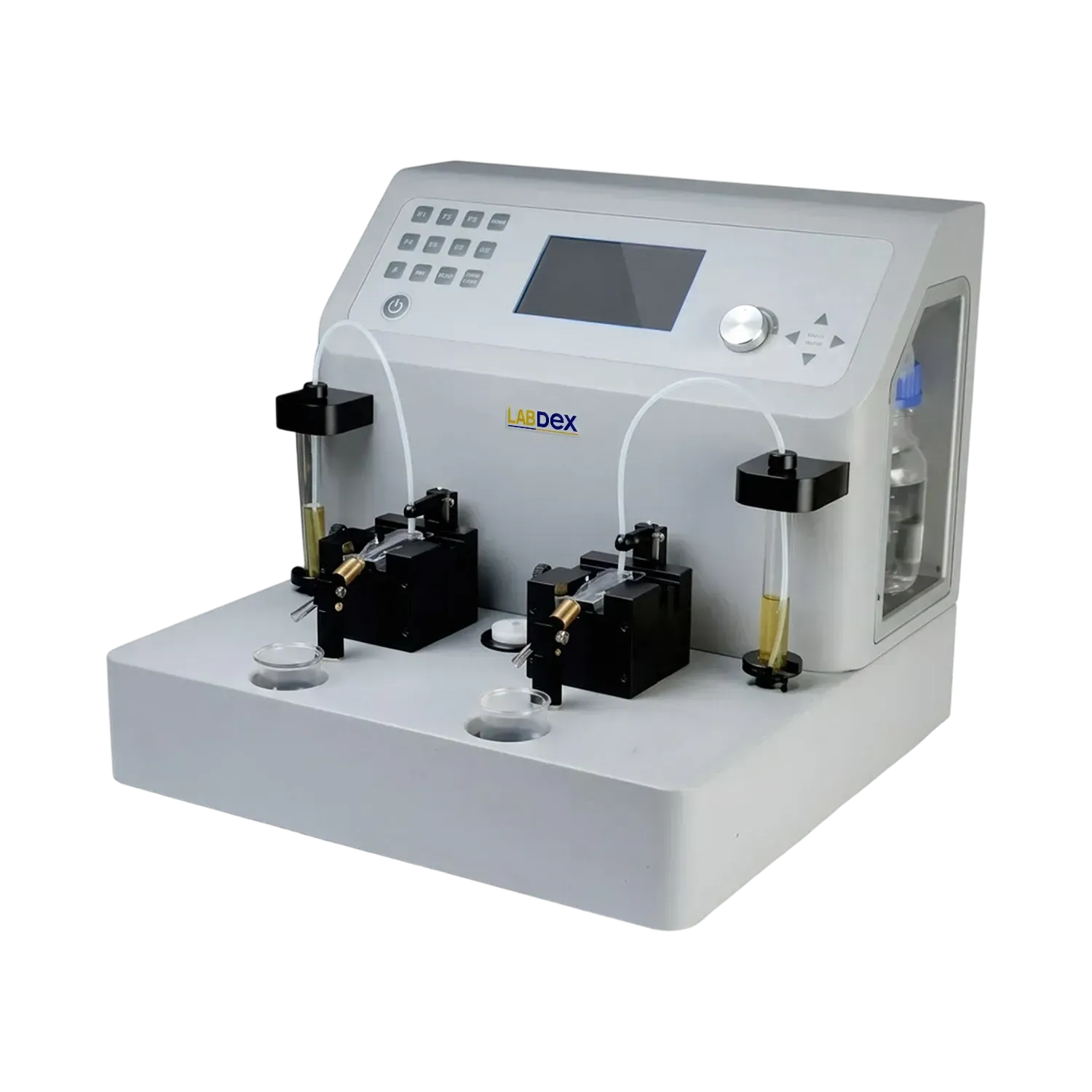

Analytical Ferrospectrometer
