Automatic Biochemistry Analyzer LX103ABA

Automatic Biochemistry Analyzer LX103ABA

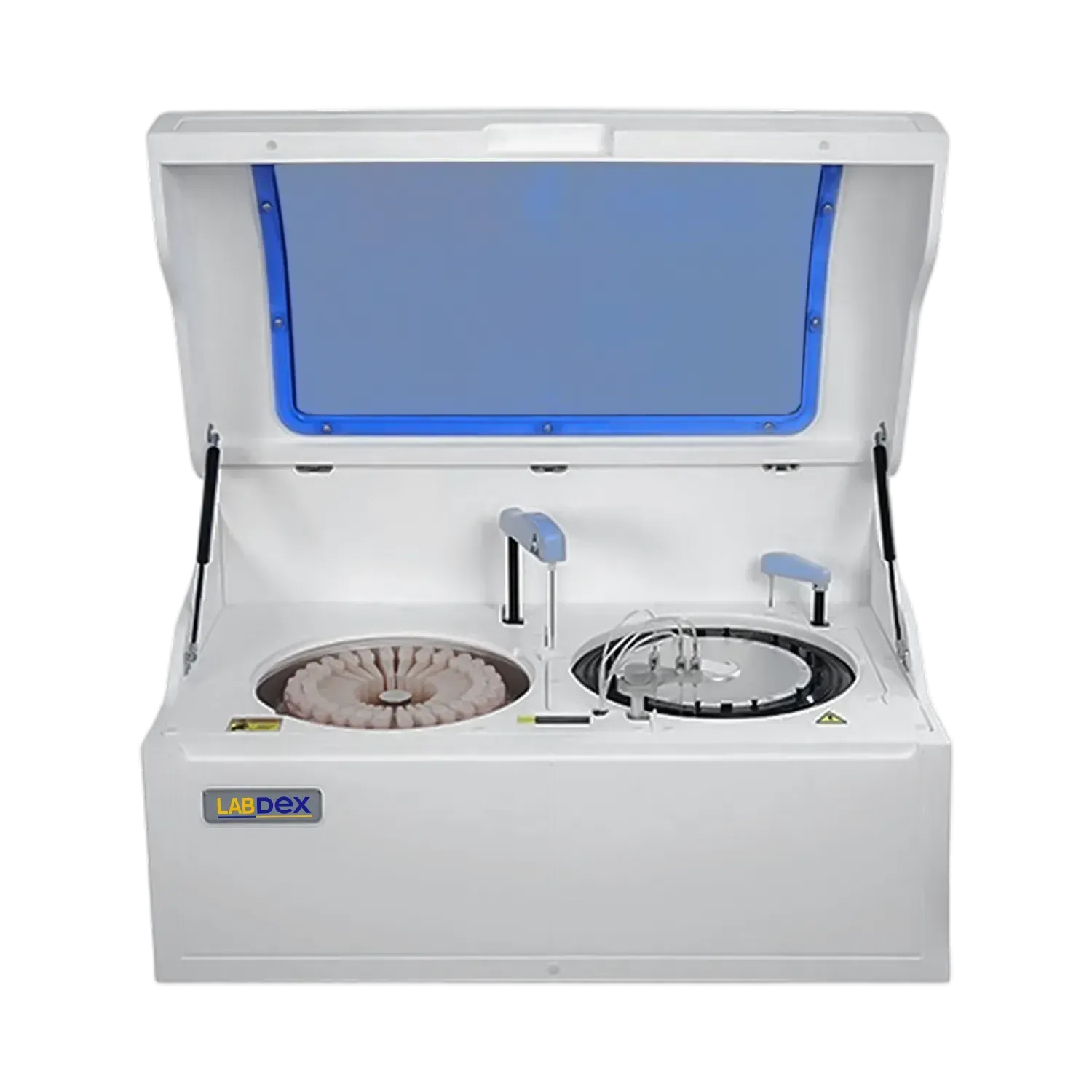

Automatic biochemistry analyzer LX103ABA is a completely automated benchtop chemistry analyzer with a throughput of 200 tests per hour. Designed with expanded on-board testing, reduced sample volume, and simple operation, this is a suitable biochemical analyzer for low to mid-volume hospitals and laboratories worldwide. It has an easy-to-use interface that provides a long-term basis for analytical performance. This system contains standardized test menus, assay methods, instrument operations, and reference ranges, all of which limit operator variation and offer consistent quality results.

Generate Catalog
Throughput600 Tests/hour
Analysis MethodEnd-point, Fixed-time, Rate (Kinetic)
Sample Positions90 sample positions, built-in barcode system available
Reagent Position180 refrigerated reagent positions(R1:45 & R2:45)
Sample Volume1-70µl
Reagent Volume10-350µl
ProbeTeflon coating, with anti-collision function, liquid level detection function
Probe WashingAutomatic washing interior and exterior
Reagent Cooling2~8℃
Temperature Control37±0.1℃, real-time monitoring
Cuvettes120 reusable cuvettes, optical length 6mm
Mixer probeIndependent stirring
WashingAutomatic cuvettes washing
STAT functionYes
Light Source12V/30W halogen lamp
SpectrophotometryPost-spectral spectrophotometry
Wavelength340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800 nm
Calibration1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P
Quality ControlInserting quality control at random
SoftwareWindows 7/8/10
LIS SystemAvailable
InterfaceLAN port access
Power SupplyAC220V±10%,50/60Hz, 110V±10%,60Hz,800W
Water ConsumptionDeionized water:<10L/H
External Size (W x D x H)1170 x 775 x 1145 mm
Net weight216 kg
Package Size (W x D x H)1350 x 930 x 1380 mm
Gross Weight280 kg

Designed with uninterrupted workflow

Probe with anti-collision and liquid-level detection function

Refrigerated tray with independent switch and 24-hour, 2-8℃ cooling system

Mixer probe having Teflon coating to avoid cross-contamination

It has intelligent software

Independent 7-step washing through washing probe

Robust testing capabilities

Efficient reagent and consumable use

Simplify operations with user-friendly graphical user interface design and touch-screen monitor

Automatic biochemistry analyzer used in many biology and histopathology laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
