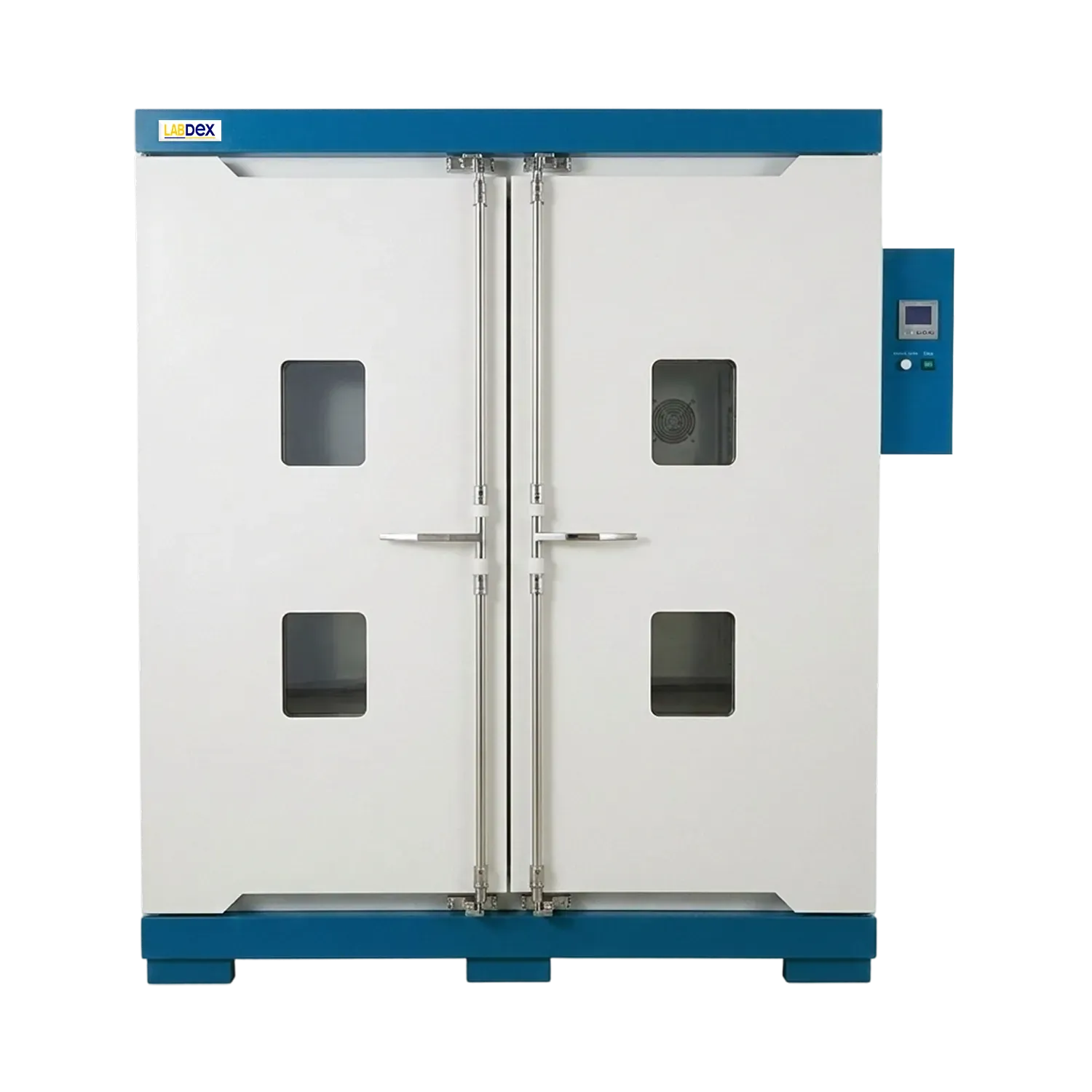

Floor Standing Drying Oven LX214FDO is designed with a forced convection system, LCD digital display with touch button setting and PID intelligent controller. It has a heat-resistance handle. The inner chamber is built with SS304 stainless steel and the outer chamber is made up of galvanized sheet electrostatic spraying exterior with high-quality rock wool board.
| Volume | 3070 L |
|---|---|
| Inner chamber size (W x L x H) | 1600 x 1200 x 1600 mm |
| Cycle mode | Forced convection (Fan) |
| Temp. range | RT+10-300°C |
| Temp. resolution ratio | 0.1°C |
| Temp. motion | ±1°C |
| Temp. uniformity | ±3 |
| Temp. control mode | PID intelligent control |
| Temp. setting mode | Touch button setting |
| Display | LCD digital display |
| Timer | 0-9999min (with timing wait function) |
| Sensor | PT100 |
| Exhaust hole | On top or side |
| Inner chamber | SS304 Stainless Steel |
| Outer shell | Galvanized sheet electrostatic spraying exterior |
| Insulation layer | High quality rock wool board |
| Heater | Stainless steel heating tube |
| Shelf number | 18 |
| Shelf space | 70 mm |
| Load per rack | 30 kg |
| Power | 15 kw |
| Power supply | AC380V (50/60Hz) |
| Exterior dimension (W x L x H) | 1750 x 1400 x 2070 mm |
It has a Forced convection system
Having double doors makes it convenient to use
Equipped with LCD digital display and PID intelligent temperature controller
It has fixed temperature and timing operation with an auto-stop function
It supports features like sensor deviation correction, menu locked, power-off memory and one key to start overheating power-off
Heat resistance handle
Having over temperature, sound and light alarm system
Built-in PT100 sensor
Standard 2 shelves
Used in industry, drying, laboratories and scientific research for desiccation, wax-melting and sterilization.
Spare shelf
Multi-segment programmable controller
RS485 interface
Printer
