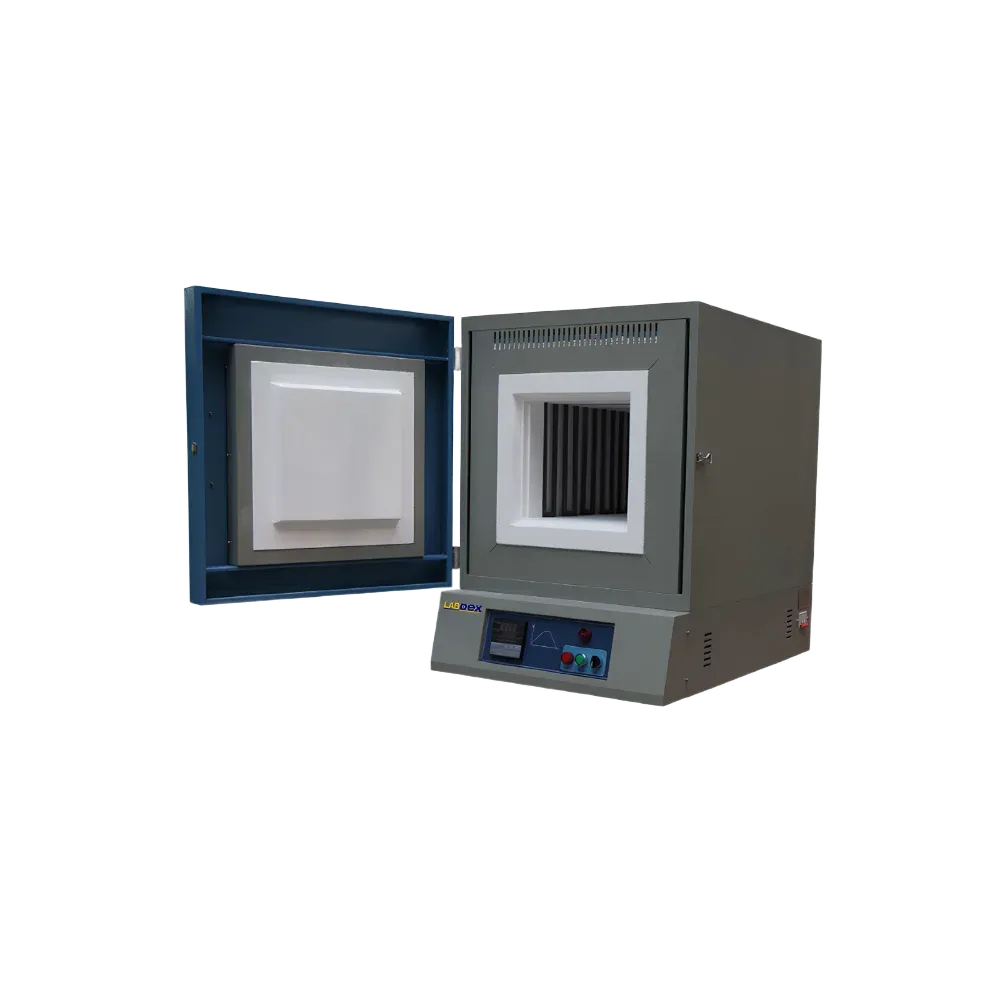

8 L Muffle Furnace LX667MF is a microprocessor controlled chamber with stable PID temperature control system. Equipped with a rapid heating speed of 0 to 30 °C / min, the chamber adopts vacuum forming ceramic fiber with no power drops off with high temperature. Temperature uniformity with excellent protection of heating elements (SiC rod) is maintained. One press start button for pre-set programmes with alerting signal for overheating of chamber.
| Volume | 8 L |
|---|---|
| Maximum temperature | 1400 °C |
| Heating element | SiC |
| Heating speed | 0 to 30 °C / min |
| Working temperature | 1350 °C |
| Temperature precision | ± 1 °C |
| Programmable groups | 2 |
| Programmable segments | 8 |
| Chamber material | Alumina Ceramic Fiber |
| Thermocouple | S style |
| Voltage | 220 V |
| Power | 4 kW |
| Dimension ( W x L x H ) | 200 x 200 x 200 mm |
High temperature heating alloy wire for heating elements
Rapid heating speed – 0 to 30 °C / min
PID controlled temperature controller with a precision of 1 °C
One button press start for pre-programmed functions
Durable inner lining of light insulating bricks
Double walled housing for high stability
1700 °C MoSi2 heating rod
Alert signal for overheating of chamber
Heat curve can be preset with the programmable function
2 programmable groups with 8 segments in each group
Used for fusing glass, soldering, brazing, creating enamel coatings, ceramics , research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample and for highly sophisticated metallurgical applications
| Accessory No | Accessory |
| 1 | Crucible tong |
| 2 | High temperature gloves |
| Accessory No | Accessory |
| 1 | Paperless recorder |
| 2 | Alumina crucible |
| 3 | Stainless steel exhaust chamber |
