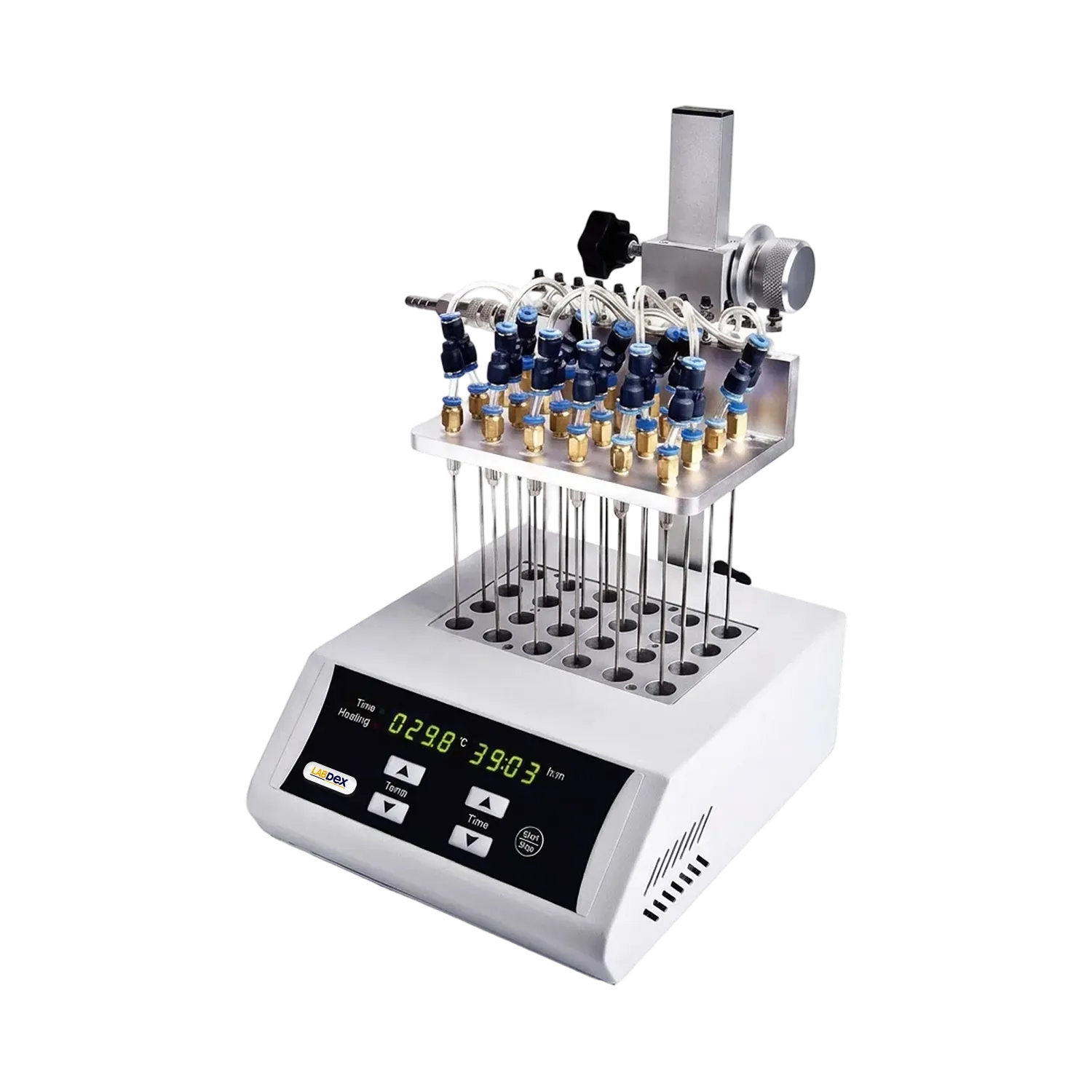

Sample concentrator LX620SC is a concentrator with a temperature control range of RT 5˚C ~ 150˚C and a heating speed of 30 mins. Equipped with an adjustable gas needle and air chamber plate height to suit the needs of different tubes. Complete equipment can be kept in a ventilation cabinet when the concentrated sample is in toxic solvents. It works in combination with the heating by dry bath and nitrogen blowing on the surface accelerating liquid evaporation and sample concentration.
| Sample capacity | 1 Standard block |
| Power | 200 W |
| Dimension (W x D x H) | 200 x 230 x 525 mm |
| Heating speed | ≤ 30 min (40 ˚C to 150 ˚C) |
| Temperature control range | RT 5˚C ~ 150˚C |
| Temperature setting range | 5˚C ~ 150˚C |
| Temperature stability (40 °C ~ 100 °C) | ± 0.5 ˚C |
| Temperature stability (100 °C ~ 150 °C) | ± 1 ˚C |
| Block temperature uniformity (100 °C) | ± 0.5 ˚C |
| Block temperature uniformity (150 °C) | ± 1 ˚C |
| Temperature display accuracy | 0.1 ˚C |
| Time range | 1 min ~ 99 h 59 min |
| Maximum needle plate lift stroke | 285 mm |
| Gas-in joint outer diameter | Φ 7 mm |
| Nitrogen pressure | ≤ 0.1 MPa |
| Nitrogen flow rate | 0 ~ 10 L / min |
| Needle length | 150 mm |
| Voltage | AC 220 V / AC 110 V, 50 / 60 Hz |
| Fuse | 250 V, 2 A / 3 A, ϕ 5 × 20 |
| Weight | 5 kg |
LED displays to show immediate temperature and time
Sample capacity – 1 standard block
Adjustable gas needle and air chamber plate height
Standard pre-configured air cavity and adjustable bracket
Built-in overheat protection, automatic fault detection and fault beep alarm
Independently controllable gas needle
Came with a unique design for the air channel control system which enhances air-tightness and reduces potential leakage and lift/press the air needle to realize the channel switch
Combinational working of dry heat bath and nitrogen blow surface
Interchangeable optional blocks
| Accessory No | Specifications | Hole diameter | Hole bottom shape | Block dimension |
| SC01 | 6 mm x 12 | 6.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC02 | 7 mm x 12 | 7.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC03 | 10 mm x 12 | 10.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC04 | 12 mm x 12 | 12.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC05 | 13 mm x 12 | 13.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC06 | 15 mm x 12 (7ml tube) | 15.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC07 | 16 mm x 12 (10ml/15ml tube) | 16.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC08 | 19 mm x 12 | 19.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC09 | 20 mm x 6 | 20.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC10 | 26 mm x 6 | 26.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC11 | 28 mm x 4 (50ml tube) | 28.5 mm | Flat bottom | 95.5 x 76.5 x 50 mm |
| SC12 | 40 mm x 2 | 40.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC13 | 0.5 ml x 12 | 8 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
| SC14 | 1.5 ml x 12 | 10.8 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
| SC15 | 2.0 ml x 12 | 10.8 mm | Round bottom | 95.5 x 76.5 x 50 mm |
| SC16 | 0.2 ml x 12 | 6.1 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
| Gas control valve is optional |
