Vacuum Atmosphere Tube Furnace LX505VA is a split type furnace designed with a high-precision microprocessor controller featuring self-tuning PID control for accurate and stable temperature regulation. The heating chamber is constructed with vacuum-formed ceramic fiber insulation, ensuring minimal heat loss and no power drop. Excellent temperature uniformity is achieved while providing effective protection for the heating elements (HRE).
| Tube dimension | Quartz tube OD 50 mm, ID 40 mm and Length 500 mm |
|---|---|
| Maximum temperature | 1200°C |
| Thermocouple | N type thermocouple |
| Heating element | High quality alloy resistance wire as heaters |
| Working temperature | 1150°C ( In inert atmosphere environment ) |
| Heating rate | 5°C -15°C / Min |
| Heating length | 200 mm |
| Chamber material | High purity polycrystal alumina ceramic fiber material |
| Temperature precision | ± 1°C |
| Temperature controller | Intelligent PID technology with 30 segments |
| Display | LED |
| Furnace shell | High quality cold-rolled steel sheets CNC processing |
| Standard Vacuum degree | -0.098 Mpa |
| Voltage | 220 V - 240 V, Single phase , 50/60 Hz |
| Power | 1.6 KW |
| Net weight | 35 Kg |
| Packing dimension | 650 x 650 x 690 mm |
| Gross weight | 75 Kg |
Rapid heating with adjustable heating rate from 5°C to 15°C per minute
High-precision PID temperature controller with programmable 30 segments
Double-walled housing design ensures high thermal stability
Safety alert system for chamber over-temperature and thermocouple failure
High-quality electronic components from Electric SA
Solid State Relay (SSR) control mode for precise power regulation
LED display clearly shows the actual temperature alongside the set temperature
High-temperature stainless steel sealing flanges equipped with air inlet, air outlet, and vacuum ports
Integrated vacuum system consisting of a rotary vane mechanical pump (2 L/s), flexible connectors, and complete evacuation pipeline accessories
Ideal for laboratory research, materials testing, thermal cycling, melting, annealing, sintering, and heat treatment processes. Also, suitable for general-purpose applications such as tempering, hardening, gravimetric and quantitative analysis under vacuum or controlled atmosphere.
| Accessory No. | Accessory |
| 1 | Two ends tube standard 304 stainless steel sealing flanges x 1 Set |
| 2 | Gas tube x 3 Meters |
| 3 | Alumina Ceramic Plug Block x 4 Pcs |
| 4 | Furnace tube hook x 1 Pc |
| 5 | Thermal resistance gloves x 1 Pair |
| Accessory No. | Accessory |
| 1 | Vacuum pump |
| 2 | Quartz reactor tube x 1 Pc |
Vacuum Atmosphere Tube Furnace
We at Labdex offers series of Vacuum Atmosphere Tube Furnace with digital PID control system and maximum temperature upto 1200 °C. It is widely used to determine the non-volatile and non-combustible proportion of the sample.
- Tube size: ᴓ 25 x 1000
- Maximum temperature: 1200 °C
- Thermocouple: N style
- Tube size: ᴓ 40 x 1000
- Maximum temperature: 1200 °C
- Thermocouple: N style
- Tube size: ᴓ 60 x 1000
- Maximum temperature: 1200 °C
- Thermocouple: N style
- Tube size: ᴓ 80 x 1000
- Maximum temperature: 1200 °C
- Thermocouple: N style
- Tube size: ᴓ 100 x 1000
- Maximum temperature: 1200 °C
- Thermocouple: N style
- Tube size: ᴓ 40 x 1000
- Maximum temperature: 1400 °C
- Thermocouple: S style
- Tube size: ᴓ 60 x 1000
- Maximum temperature: 1400 °C
- Thermocouple: S style
- Tube size: ᴓ 80 x 1000
- Maximum temperature: 1400 °C
- Thermocouple: S style

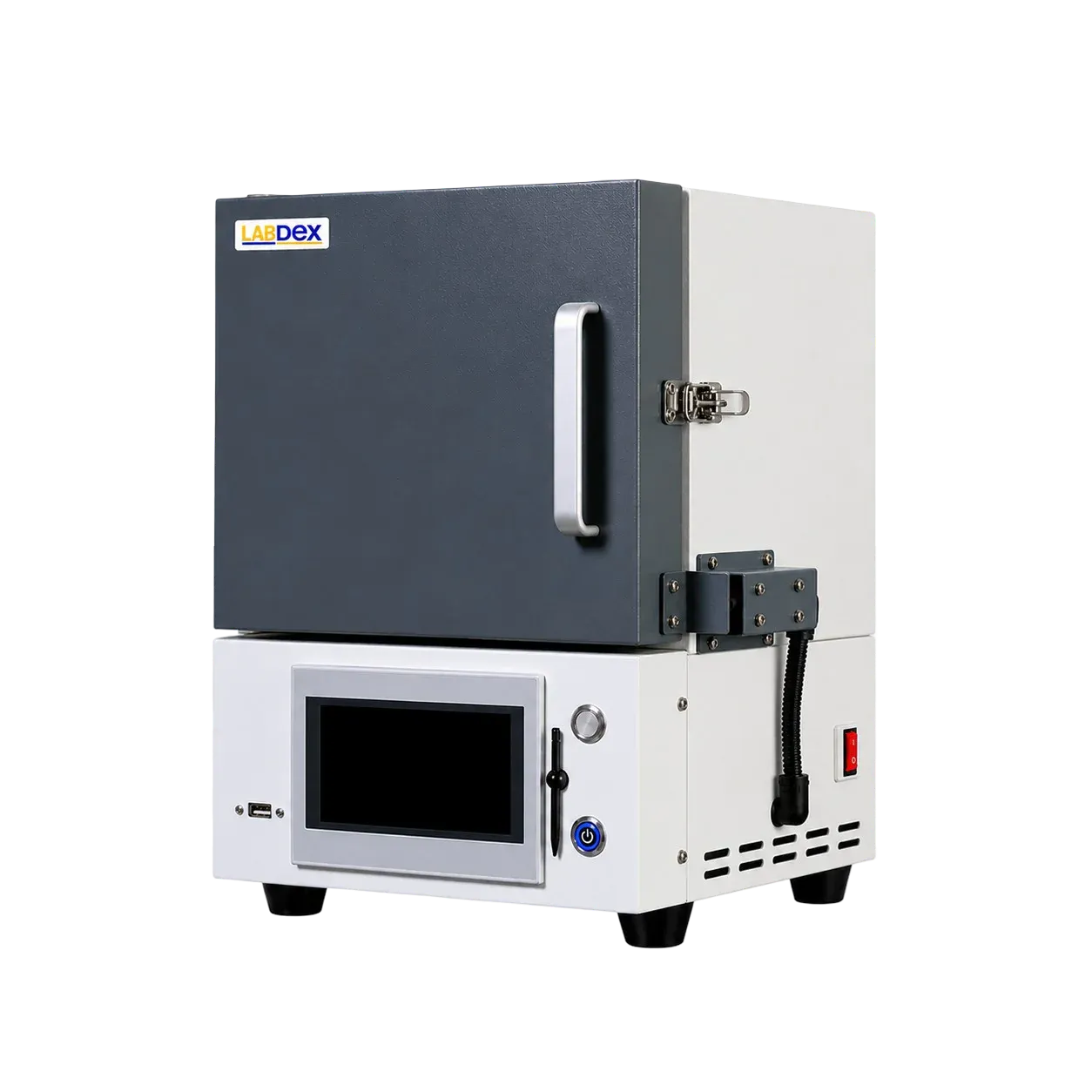

Muffle Furnace
