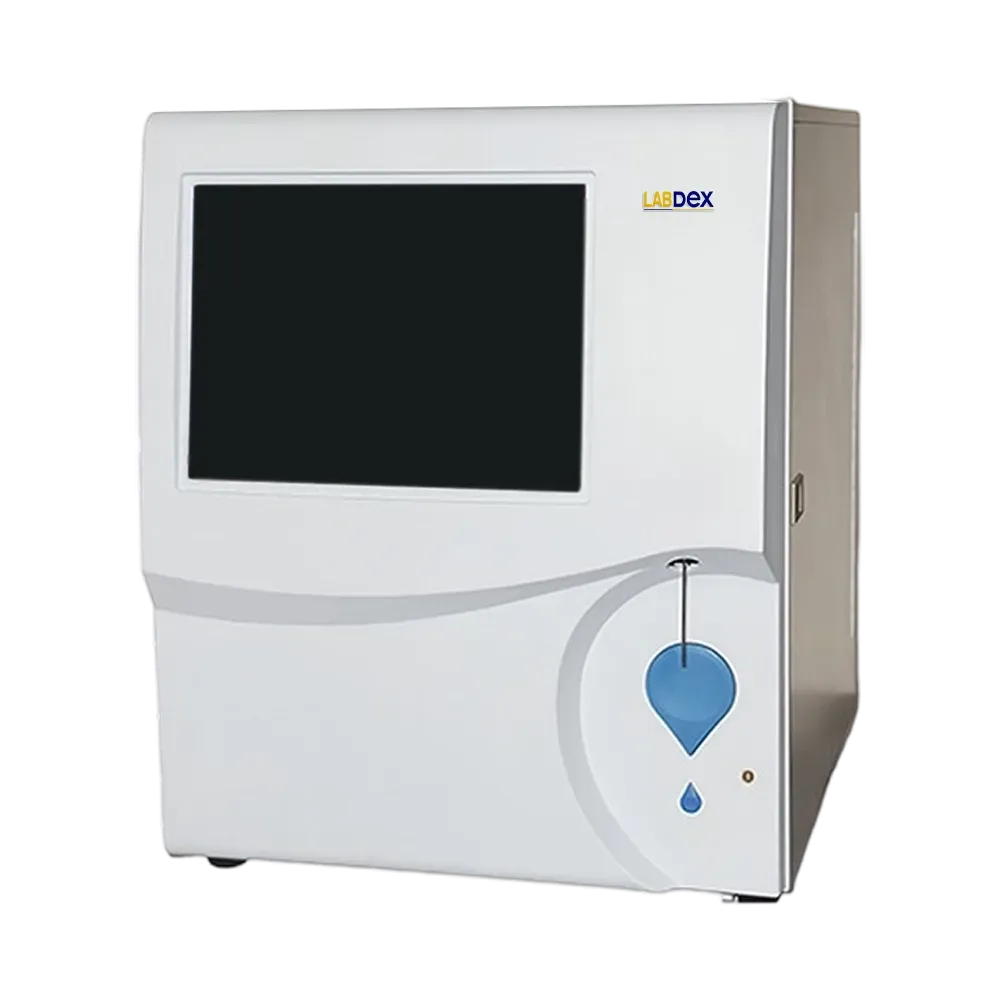

Hematology Analyzer LX309HMA is a fully automatic 5-part differential unit capable of performing up to 90 tests per hour. It is designed with a color touchscreen display and offers multiple testing modes. The working principle includes electrical impedance for WBC differentiation and CBC/RBC/CBC+DIFF counts, and a colorimetric method for HGB testing. It can store up to 200,000 results, including histograms. The analyzer is widely used for clinical and research applications, and all functions are efficient, user-friendly, and fast to operate.
| Throughput | ≥ 90 Sample per hour |
|---|---|
| Sample volume | Whole bloods 10 uL, pre-dilutes 20 uL |
| Sample type | Whole blood, peripheral blood, pre-dilute |
| Quality control | Supports multiple QC methods including L-J charts and floating quality control. |
| Parameters | WBC, LYIH, MON#, NEU#, EOS#, BAS#, LYI%, MON%, NEU%, EOS%, BAS%, RBC HGB, MCV, HCT, MCHMCHC, RDW-SD, RDW-CV PLT, MPV, PDW, PCT, P-LCC, P-LCR, LX. LY, NX NYALY#, ALY%, LIC#, LIC%, NIL#,NIL% |
| Research parameters | ALY#, ALY%, LIC#, LIC%, NIL#, NIL% |
| Analysis methods | CBC, CBC+DIFF, HGB, RBC, WBC |
| Operation model | 14 Inch touch screen, keyboard/mouse |
| Result display | Combined scatter chart (≥ 3 scatter chart), > 4 histograms |
| Auto sampler | Sample capacity: 50, Supports emergency analysis |
| Printout | Supports external laser and inkjet printers with multiple print formats, including user-defined options. |
| Storage capacity | Stores over 200,000 analysis results with both numerical and graphical data. Test results can be easily exported to Excel format via a USB interface. |
| Other function | 360° Rotating bar code scanning |
| Data transportation | USB x 4, RS232, LAN, HDMl, Duplex LIS |
| Power supply | AC 100 - 240 V, 50 - 60 Hz |
| External dimension (W x D x H) | 710 x 640 x 670 mm |
| Net weight | 57 Kg |
| Packing dimension (W x D x H) | 830 x 740 x 890 mm |
| Gross weight | 80 Kg |
Unique jacket flow system for accurate and stable cell signal detection
5 Part differential, 29 parameters
Optical solid-state LASER technology with wide-angle scatter
Electrical impedance + double hydrodynamic focusing
Advanced abnormal cell detection (NRBCs, malaria, immature cells, etc.)
Customisation alarms and abnormal scattergram alerts
L-J and floating quality control options
User-defined reporting formats
Come with an auto sampler
Storage of 200,000+ results with export capability
Built-in safety alerts for operation protection
Supports original reagents, controls & calibration
Hematology analyzers are used to perform tests on blood samples and are commonly used in the medical field for white blood cell counts, complete blood counts (CBC), reticulocyte analysis, and coagulation testing.
